Primary femoro-popliteal-tibiofibular bypass in patients with critical limb ischemia in the era of endovascular surgery

Alexander Yu. Burov; Буров Александр Юрьевич; Evgenii R. Lysenko; Лысенко Евгений Рудольфович; Oleg G. Gryaznov; Грязнов Олег Германович; Elena V. Gulyaeva; Гуляева Елена Вадимовна; Radzhab B. Abasov; Абасов Раджаб Баширович; Karina A. Knyazeva; Князева Карина Андреевна; Elena D. Malyutina; Малютина Елена Дмитриевна; Emil R. Islyamov; Ислямов Эмиль Рустемович

doi:10.17816/clinpract690296

Primary femoro-popliteal-tibiofibular bypass in patients with critical limb ischemia in the era of endovascular surgery

Authors: Burov A.Y.¹, Lysenko E.R.¹, Gryaznov O.G.¹, Gulyaeva E.V.¹, Abasov R.B.¹, Knyazeva K.A.¹, Malyutina E.D.¹, Islyamov E.R.¹
Affiliations:
1. Federal Clinical Center for High Medical Technologies of the Federal Medical and Biological Agency
Issue: Vol 16, No 3 (2025)
Pages: 30-37
Section: Original Study Articles
Submitted: 11.09.2025
Accepted: 14.09.2025
Published: 06.10.2025
URL: https://clinpractice.ru/clinpractice/article/view/690296
DOI: https://doi.org/10.17816/clinpract690296
EDN: https://elibrary.ru/SGMBVH
ID: 690296

Cite item

Full Text

Abstract
Full Text
About the authors
References
Supplementary files
Statistics

Abstract

BACKGROUND: In the majority of patients with critical ischemia in the lower limbs, the findings include the «multi-level» atherosclerotic lesions in the arteries of the femoral-popliteal-tibiofibular segment. The optimal method of re-vascularisation in this cohort of patients is not defined as of today. AIM: To evaluate the efficiency of conducting the initial autovenous tibiofibular bypass surgery in case of lesions in the arteries of the femoral-popliteal-tibiofibular segment in patients with critical ischemia of the lower limbs. METHODS: The analysis included the results of the initial tibiofibular autovenous bypass surgeries, performed in 112 patients at the Federal State Budgetary Institution «Federal Clinical Center of High Medical Technologies» under the Russian Federal Medical-Biological Agency during the period from 2010 until 2021, of which 25 (22.3%) individuals had the stage III chronic arterial insufficiency in the lower limbs, 87 (77.7%) — stage IV acc. to the Fountain–Pokrovsky classification. The distribution by the atherosclerotic lesion in arteries of the lower limbs with taking into consideration the TASC II classification was the following: type C — in 9 (8.0%), type D — in 103 (92.0%). RESULTS: Within the 30 days period, 4 (3.6%) patients have shown the presence of unfavorable cardio-vascular events, 3 (2.7%) cases resulted in the early high amputation. The perioperative mortality rate was 2.7% (n=3). The primary passability of the tibiofibular autovenous bypass was 91%, 76% and 67% in 1, 3 and 5 years, while the secondary passability was 93%, 80% and 71%; the limb survival rate was 98%, 86% and 81,5%; the overall survival of the patients was 88.5%, 81% and 70%, respectively. CONCLUSION: The initial tibiofibular autovenous bypass surgeries (bypass first) represent the effective and safe method of surgical treatment for atherosclerotic lesions in the arteries of the femoral-popliteal-tibiofibular segment in patients with critical ischemia of the lower limbs. Open-access surgeries in the era of endovascular surgery can be used as the first line therapy with comparable direct and remote results.

Keywords

critical ischemia of the lower limbs, femoral-popliteal-tibiofibular arterial segment, tibiofibular autovenous bypassing

Full Text

BACKGROUND

The diseases of peripheral arteries are widespread worldwide and affect 113 mln people aged from 40 years and older, of which 42.6% live in the countries with low and medium social-demographic index [1]. The occurrence rate for the diseases of peripheral arteries has increased by 72% during the period from 1990 until 2019, taking into consideration the 45% overall population growth [2, 3]. The five-year cumulative rate of clinical worsening from the asymptomatic disease of peripheral arteries to the intermittent claudication is 7%, while from the intermittent claudication to critical ischemia in the lower limbs — 21% [4]. As of today, in the whole world, every year approximately 25 000 high amputations of the limbs are carried out for the reason of critical ischemia in the lower limbs, which significantly decreases the life duration in this cohort of patients [5]: the overall mortality level is reaching 15% in 1 year, 24% in 2 years and 43% in 5 years [6]. According to the data from multiple authors, critical ischemia of the lower limbs is associated with the development of cardio-vascular events, including the period of 30 days after re-vascularisation [7–9]. It is undeniable that the main method for treating the patients with critical ischemia in the lower limbs is the re-vascularisation of the lower limbs [10]. In the majority of such patients, a “multi-level” atherosclerotic lesion is found in the arteries of the femoral-popliteal-tibiofibular segment [11], which is why the issue of selecting the reconstructive interventions as of today remains topical and discussible.

Research aim — to analyze the 12-years experience of performing the initial tibiofibular autovenous bypass surgeries in patients with critical ischemia in the lower limbs at the premises of the Federal State Budgetary Institution “Federal Clinical Center of High Medical Technologies” under the Russian Federal Medical-Biological Agency (FSBI FCC HMT under the Russian FMBA) and to evaluate their efficiency.

METHODS

Research design

Single-center non-randomized retrospective observational research.

Conformity criteria

Inclusion criteria: the presence of critical ischemia in the lower limbs (resting pain or trophic defects in the shin and in the foot); “multi-level” atherosclerotic lesion in the femoral-popliteal-tibiofibular arterial segment; absence of previously conducted surgeries in the ipsilateral limb; the presence of the greater saphenous vein applicable for bypassing.

Non-inclusion criteria: intermittent claudication of the lower limbs; isolated lesions in the shin arteries; absence of at least one passable tibial artery for shaping the distal anastomosis; the presence of a vast trophic defect in the zone of formation of the planned anastomosis.

Research facilities

The examination was carried out at the Vascular Surgery Department of the Center for Cardio-Vascular and Endovascular Surgery of the FSBI FCC HMT under the Russian FMBA.

Research Duration

The research work was carried out for 12 years (during the period from January 2010 until December 2021).

Medical procedure description

During the pre-operative period, all the patients underwent the procedures of measuring the ankle-brachial index, the stratification by the scale of the severity of morphological damage in the tissues of the foot, the perfusion of the lower limbs, the severity of the infectious process (Wound, Ischemia, foot Infection, Wifi, 2014) with further staging the clinical risk of high amputation, as well as the ultrasound examination of the arteries and veins (for the evaluation of the possibilities of using the greater saphenous vein as the conduit) and the contrasted visualization of arteries (angiography /multispiral computed tomography of vessels, MSCT-AG) of the lower limbs. Further procedures included the modification of risk factors, prescribing or correcting the antihypertensive therapy, the insulin therapy, the intake of statins, of antiaggregants and the anticoagulants.

All the surgical interventions were carried out under the endotracheal anesthesia. In 100% of the cases, the proximal anastomosis with autovenous bypass was formed from the common femoral artery, while for the bypassing artery, any other passable artery with better outflow was used. The vast majority of surgeries was carried out using the in situ method, but also the compound and reversed autoveins were used as the conduit (the characteristics of all the tibiofibular autovenous bypass surgeries are provided in table 1).

Table 1

Types of tibiofibular bypass surgeries

Type of bypassing	Autovenous conduit, n (%)
Type of bypassing	*in situ*	reversed	compound
Femoral-anterior tibial	22 (19.6)	2 (1.8)	0 (0.0)
Femoral-fibular	34 (30.3)	7 (6.3)	2 (1.8)
Femoral-posterior tibial	34 (30.3)	3 (2.7)	3 (2.7)
Femoral-tibioperoneal	5 (4.5)	0 (0.0)	0 (0.0)

Statistical analysis

The statistical analysis and data processing were carried out using the Statistica v.10.0 software by StatSoft Inc. (USA) using the parametric (t-Student’s test) and the nonparametric (Kaplan–Meier survival analysis) methods. The statistical significance was set as p <0.05.

RESULTS

Research sample (participants)

A total of 112 initial tibiofibular autovenous bypass surgeries were performed in 94 (83.9%) male patients and 18 (16.1%) female patients. The mean age of the patients was 66.3±9.1 years (ranging from 44 to 90 years). Stage III chronic arterial insufficiency of the lower limbs acc. to the classification by Fountain–Pokrovsky was diagnosed in 25 (22.3%) patients, stage IV — in 87 (77.7%). The mean value of the ankle-brachial index before surgical intervention was 0.15±0.08.

The stratification of the patients using the Wifi scale (2014) with staging the clinical risk of high amputation is provided in table 2. The distribution of patients by the atherosclerotic lesion in the arteries of the lower limbs acc. to the TASC II classification was the following: type C was diagnosed in 9 (8.0%) individuals, type D — in 103 (92.0%). All the patients enrolled into the research had a number of concomitant diseases and past surgical interventions (table 3).

Table 2

Stratification of patients using the Wifi scale with determining the clinical risk stage for high amputation

Clinical stage	Wifi scale range of values	n (%)
II (low risk)	0-2-0	5 (4.4)	25 (22.3)
II (low risk)	0-3-0	20 (17.9)	25 (22.3)
III (medium risk)	1-2-0	6 (5.4)	70 (62.5)
	1-2-1	8 (7.1)
	1-3-0	19 (17.0)
	1-3-1	28 (25.0)
	2-2-0	9 (8.0)
IV (high risk)	2-2-2	2 (1.7)	17 (15.2)
	2-3-1	3 (2.7)
	2-3-2	3 (2.7)
	3-3-0	3 (2.7)
	3-3-1	3 (2.7)
	3-3-2	3 (2.7)

Table 3

Comorbid disorders in patients with critical ischemia of the lower limbs

Disorders	n (%)
Arterial hypertension	105 (93.8)
Ischemic heart disease	60 (53.6)
Re-vascularisation of the myocardium	18 (16.1)
Atrial fibrillation	13 (11.6)
Past acute cerebrovascular accident	18 (16.1)
Carotid re-vascularisation	14 (12.5)
Diabetes	31 (27.7)
Chronic kidney disease stage III–V	18 (16.1)
Chronic obstructive pulmonary disease	10 (8.9)
Re-vascularisation of the contralateral limb	26 (23.2)

The main research outcome

Within the framework of this scientific research, we have tracked and analyzed the direct (30-days) and the remote (5-years) results of tibiofibular autovenous bypass surgeries.

In 7 (5.9%) cases of initially selected 119 patients for bypass surgeries, the decision was to carry out the hybrid intervention due to the technical failure (conversion). These patients were excluded from the further analysis. The mean value of the ankle-brachial index after the surgical intervention was 0.94±0.16. Within the period of 30 days, 4 (3.6%) operated patients were diagnosed with unfavorable cardio-vascular events (three acute myocardial infarctions and a single acute cerebrovascular accident) and in 3 (2.7%) cases, the early high amputation was done. The perioperative mortality was 2.7% (3 patient), the reasons of which became the abovementioned acute myocardial infarctions (2; 1.8%) and an acute cerebrovascular accident (1; 0.9%). Local complications in the area of the postoperative wounds were detected in 11 (9.8%) patients.

The remote results included the primary and the secondary passability, the limb survival and the overall survival. The primary passability of the tibiofibular autovenous bypasses was 91%, 76% and 67% in 1, 3 and 5 years (p <0.05), while the secondary passability of the bypasses — 93%, 80% and 71%, respectively (p <0.05) (Fig. 1, 2). The value of the limb survival parameter among the patients was 98%, 86% and 81.5% in 1, 3 and 5 years (p <0.05) (Fig. 3), the overall survival of the patients — 88.5%, 81% and 70%, respectively (p <0.05) (Fig. 4).

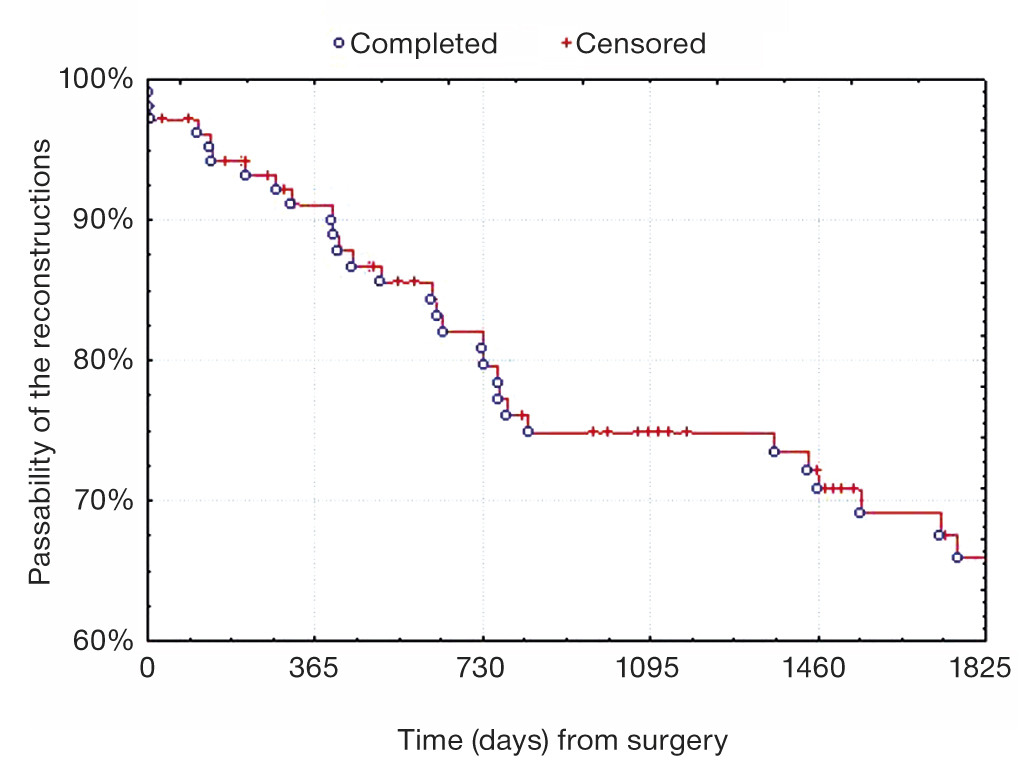

Fig. 1. Remote results: primary passability.

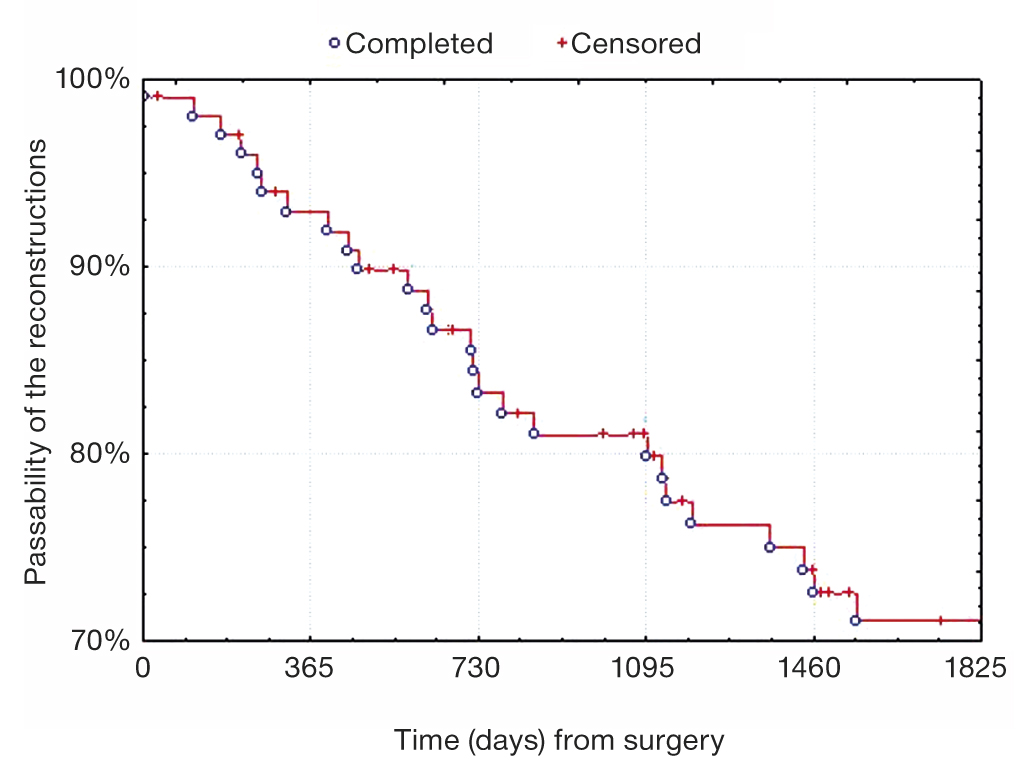

Fig. 2. Remote results: secondary passability.

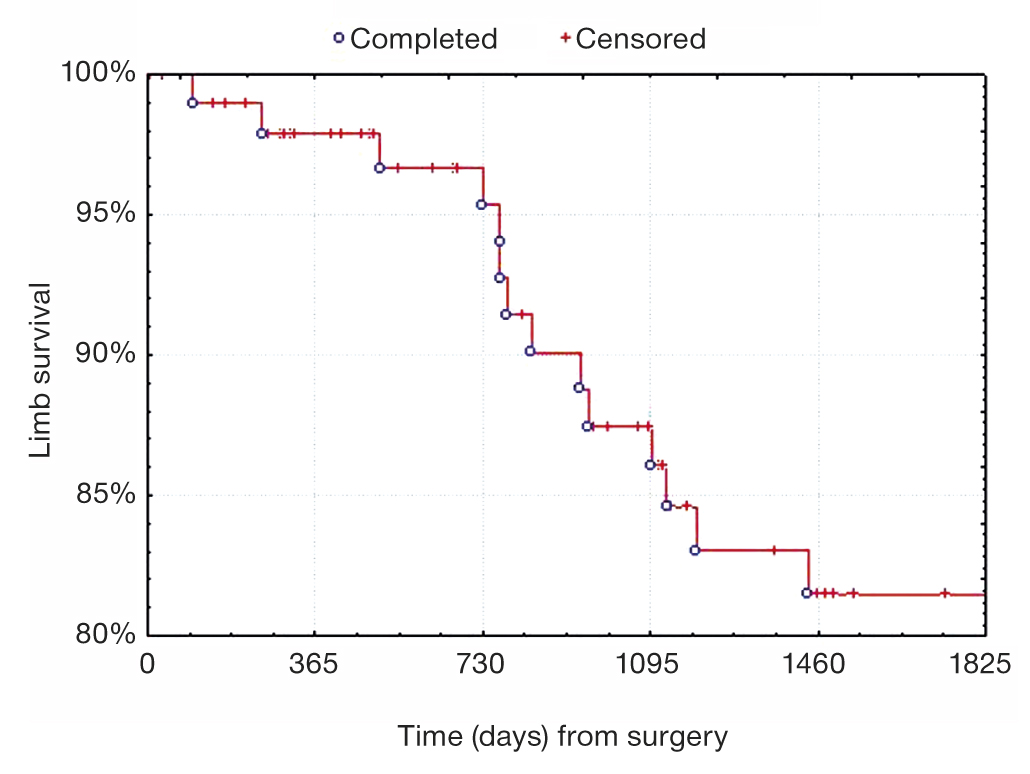

Fig. 3. Remote results: limb survival.

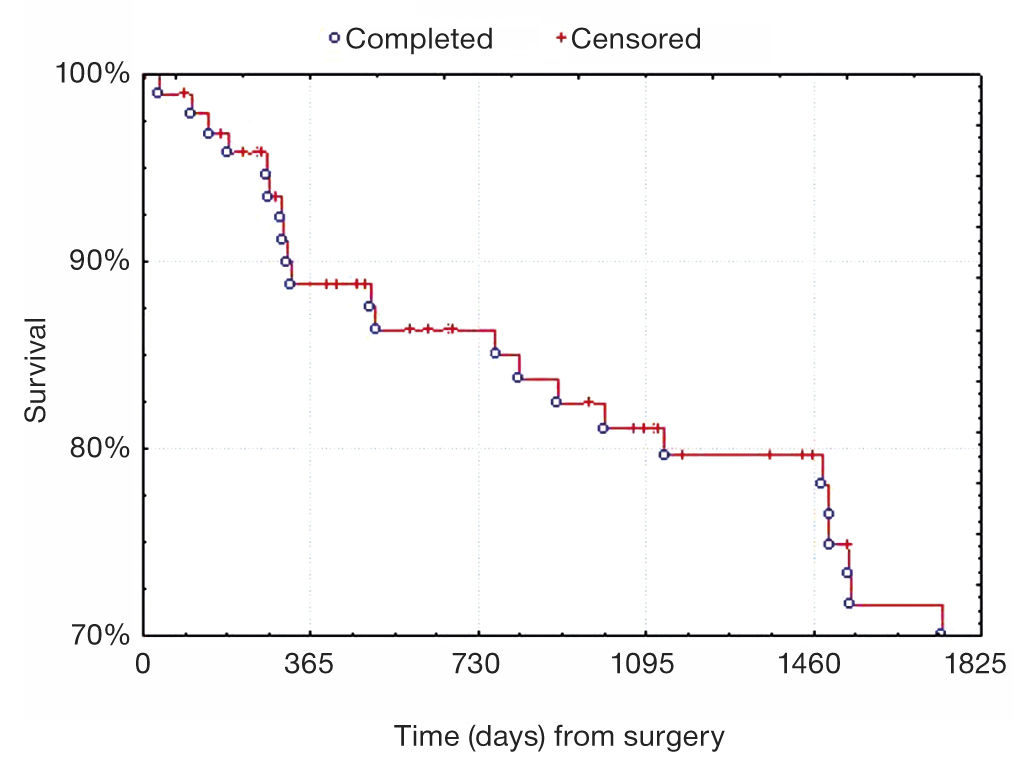

Fig. 4. Remote results: survival.

DISCUSSION

During the last 10 years, various international and Russian scientific communities have issued more than 20 consensus documents, related to the problems of treating critical ischemia in patients with atherosclerotic lesions in the arteries of the lower limbs. The successfully conducted arterial reconstructive surgery not only saves the limb and improves the quality of life, but also saves the life of the patient.

The optimal tactics of surgical treatment for the patients with critical ischemia in the lower limbs in cases of multi-level extensive lesions in the arteries of the lower limbs still remains a topic of multiple research works, including the international randomized multi-center ones (BEST-CLI, BASIL-2) [12, 13]. In recent years, the rates of conducting the endovascular interventions as the strategy of first-line re-vascularisation has significantly increased [14, 15]. Despite this tendency, the results of our research present the convincing data in favor of using the tactics of “bypass first” for the lesions of the arteries in the femoral-popliteal-tibiofibular segment in patients with critical ischemia of the lower limbs. The evaluation of the significance of the strategy for re-vascularisation of the lower limbs in such patients is carried out, generally, by the direct (perioperative) and remote results of reconstructive interventions. In case of the presence of a number of technical possibilities (greater saphenous vein applicable for bypass, passable tibial artery for the formation of the distal anastomosis, absence of vast trophic defects in the zone of the planned anastomosis formation in the shin) practically in all the patients after the femoral-tibiofibular autovenous bypass surgery we managed to achieve the positive result in the early follow-up period.

The perioperative complications in our research have demonstrated the minimal values for 30-days mortality (2.7%), for high amputation (2.7%) and for the unfavorable cardio-vascular events (3.6%). These data are comparable to the ones from the global research works and indicate the high safety of the femoral-tibiofibular bypass surgeries in patients with critical ischemia of the lower limbs. Thus, in the BEST-CLI research [12], in the cohort of patients with the greater saphenous vein applicable for bypass, between the groups of the open-access and the endovascular treatment, no significant differences were demonstrated in 30 days regarding the rates of the main unfavorable cardio-vascular events (4.6% and 3.2%, respectively) and the perioperative mortality (1.7% and 1.3%, respectively). In the well-known Finnvasc register, the 30-days mortality was 3.1%, while the 30-days high amputation rate was 6.3% [16].

High levels of the rate of limb survival and of the overall survival, which were analyzed in our research in the remote period, also correspond to the worldwide research data published in the last several years. Thus, in the BASIL-2 research, the limb survival rate in the group of autovenous bypass surgeries was 80% in 5 years, however, it is worth keeping in mind that more than half of the patients have deceased within this period after the randomization [13]. Among 38 470 patients with critical ischemia of the lower limbs, which underwent the infrainguinal bypassing or endovascular interventions, the evaluation of the 30-days survival rate was 98%, while the 2- and 5-years survival rate — 81% and 69%, respectively [17].

CONCLUSION

The initial tibiofibular autovenous bypass operation (the bypass first surgery) is an effective and safe method of surgical treatment for atherosclerotic lesions in the arteries of the femoral-popliteal-tibiofibular segment in patients with critical ischemia of the lower limbs. In the era of endovascular surgery, open-access surgeries can be used as the first line operations with the comparable direct and remote results.

ADDITIONAL INFORMATION

Author contributions: A.Yu. Burov, E.R. Lysenko, O.G. Gryaznov, performing surgical operations on patients; A.Yu. Burov, general concept, processing and discussion of the study results, writing the text of the article; E.V. Gulyaeva, R.B. Abasov, search and analytical work, writing the text of the article; K.A. Knyazeva, E.D. Malyutina, performing ultrasound diagnostics on patients in the postoperative period, processing and discussion of the study results; E.R. Islyamov, search and analytical work, processing and discussion of the study results; E.R. Lysenko, general concept, management of patient treatment and discussion of the study results, editing the text. Thereby, all authors provided approval of the version to be published and agree to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Ethics approval: All patients signed informed voluntary consent for treatment and surgery, as well as for the use of anonymized health data for scientific purposes. The study was approved by the local ethics committee of the A.I. Burnazyan Federal Medical Biophysical Center of the Federal Medical and Biological Agency of Russia (Protocol No. 123 dated March 26, 2025).

Funding sources: The study was carried out without attracting external funding.

Disclosure of interests: The authors declare no conflict of interests.

Statement of originality: The authors did not utilize previously published information (text, illustrations, data) in conducting the research and creating this paper.

Data availability statement: The editorial policy regarding data sharing does not apply to this work, data can be published as open access.

Generative AI: Generative AI technologies were not used for this article creation.
